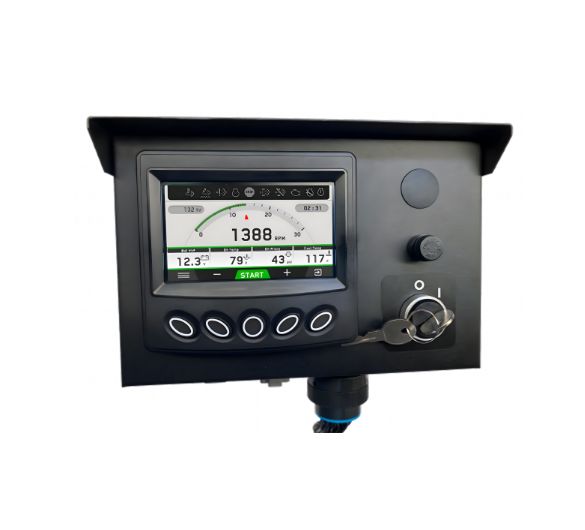

MLC485 Panel for Engine Monitoring and Control

Key Features of the MLC485 Panel

• High-Visibility 4.3” Display: The MLC485 Panel includes a bright, optically bonded LCD that remains readable even under direct sunlight. This enhances visibility for operators working in marine decks, outdoor machinery or harsh industrial environments.
• Versatile Input and Output Options: Equipped with analog, digital and frequency inputs along with multiple outputs, the panel connects easily to sensors, switches and engine control components without requiring additional expansion modules.
• Accurate Real-Time Engine Monitoring: The panel provides clear, real-time updates for RPM, temperature, pressure and other critical engine parameters, allowing operators to take quick action when performance deviates from safe limits.
• Rugged and Durable Construction: With an IP67-rated enclosure and powder-coated steel housing, the MLC485 Panel resists moisture, dust, vibration and impact, ensuring long-term reliability in demanding operating conditions.
• Easy Navigation with Tactile Soft Keys: Five responsive soft keys offer smooth menu navigation and configuration control. Operators can operate the panel even while wearing gloves or working in high-vibration environments.
• USB Configuration and Data Transfer: A built-in USB port allows fast import/export of settings, simplifying maintenance, configuration updates and troubleshooting.
• Wide Engine Compatibility: The MLC485 supports both mechanical and J1939 electronic engines, making it suitable for multi-brand equipment fleets and diverse industrial applications.

Applications of the MLC485 Panel

• Marine Engines and Gensets: Ideal for boats, work vessels and marine generator sets where moisture, vibration and direct sunlight are common. The bright display and rugged build ensure reliable operation in demanding sea environments.
• Industrial Power Equipment: Suitable for compressors, generators, pumps and construction machinery. The panel maintains performance during extended run-time, exposure to dust and continuous vibration.
• Oil & Gas Equipment: Designed for wellsite machinery and oilfield operations where environmental stress, temperature fluctuations and long duty cycles require durable monitoring solutions.
• Mobile and Off-Highway Machinery: Supports excavators, drilling rigs, tractors and heavy-duty vehicles operating in remote and rugged conditions. Real-time engine insights help improve safety and performance.
• Backup and Emergency Power Systems: Ensures reliable monitoring of generator parameters and readiness status during critical power requirements. Quick diagnostic access helps operators maintain system uptime.

LE — MLC485 PANEL (Clean, White-Hat, Accurate)

MLC485 Panel Technical Specifications

Category	Details
Display	4.3-inch transmissive TFT LCD 480 × 272 resolution (WQVGA) Optically bonded, sunlight-readable with approx. 900–1000 cd/m² brightness
Processor & Memory	Freescale i.MX35 32-bit processor @ 532 MHz 128 MB DDR2 RAM 256 MB internal flash storage
Operating Voltage	6–32 VDC operating range Built-in reverse polarity and load-dump protection
Inputs	4 × Analog inputs (0–5 V or 4–20 mA) 2 × Battery voltage inputs 3 × Digital inputs 1 × Frequency input (2 Hz – 10 kHz)
Outputs	4 × Low-side outputs (500 mA each) 1 × Analog output (0–5 V)
Communications	CAN 2.0B with J1939 and proprietary messaging RS485 (MODBUS Master/Slave supported) USB 2.0 full-speed host for configuration & data
Environmental	Operating Temp: -40°C to +85°C Storage Temp: -40°C to +85°C Protection Rating: IP67 (front and rear) Vibration: 7.86 Grms (5–2000 Hz) Shock: ±50G
Enclosure	Powder-coated cold rolled steel housing Suitable for harsh and outdoor applications
Dimensions	238 × 154 × 130 mm (W × H × D) Display cutout: Refer to panel manual
Controls	Integrated keyswitch included Optional emergency stop button available

How the MLC485 Panel Works

The MLC485 Panel operates as a complete engine monitoring and control solution. At the core of the system is the PowerView® 485 display, which collects real-time data from the engine through J1939 or sensor-based inputs. The display processes this information and presents it on a high-brightness, sunlight-visible screen.

Incoming signals from sensors—such as temperature, pressure, RPM and voltage—are interpreted by the controller and displayed as gauges, warnings or fault codes. Operators can navigate the interface using the soft keys to view diagnostics, adjust settings, reset alarms or customize parameter screens.

Outputs from the panel can be used to control equipment functions, activate alarms or trigger external systems. The optional emergency stop and integrated keyswitch provide additional safety and control for engine-driven equipment.

Through its USB port, the panel supports importing and exporting configurations, which makes commissioning, troubleshooting and maintenance simple and efficient.
